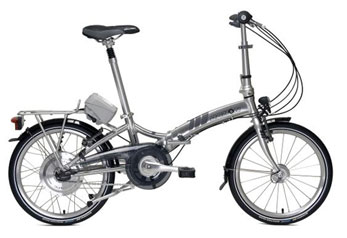

Roo EL
|
|
|
The Roo EL is the
world's lightest, most portable, and functional electric bike. It
rides like a full size bike, has a powerful electric motor, and folds
in 15 seconds. Because it only weighs 17 kilos (37.4 lbs.), it can
be taken anywhere. Ride it to work and if it's raining, throw it in
the back of a friend's car and catch a ride home. The Roo EL features
a Dahon Special Edition drive system from SRAM, which has a range
of 50 km, and is 20% more powerful and 70% quieter than its predecessor.
Ideal customers: commuters who don't want to arrive at work bathed
in sweat, older Baby Boomers, the physically disabled, grandparents
who want to ride with their grand kids - anyone who wants to cycle
but needs a bit of an "assist".
|
|
|
|
|
Dahon Special Edition SRAM electric motor |
|
|
Long-lasting NiMh battery with 50 km range |
|
|
Intuitive motion controlled system only adds power
when you pedal |
|
Integrated SRAM 5 speed hub gear for efficient
pedaling in any terrain |
|
With the electric assist turned off and the battery
removed, the Roo EL rides just like a standard Dahon bike. |
|
|
|
|
|
|
|
 |
| SPECIFICATIONS |
|
| COLOUR |
Brushed aluminum |
| SPEEDS: |
5 |
| GEAR INCHES |
33" - 83" |
| DISTANCE: SEAT POST TO HANDLEBAR |
Min: 610mm (24") Max: 650mm (25.5") |
| DISTANCE: SADDLE TO PEDAL |
Min: 730 mm (28.75") Max: 980 mm (38.5") |
| FOLDED SIZE |
D3: 29 x 66 x 77 cm (11.5" x 26" x 30.5");
D7: 33 x 66 x 80 cm (13" x 26" x 31.5") |
| WEIGHT |
17.0 kg. (37.4 lbs) base model w/o options |
| FOLDING TIME |
15 seconds |
| SUGGESTED RIDER HEIGHT |
142 cm - 193 cm (4'8" - 6'4") |
| MAX RIDER WEIGHT |
105 kg. (230 lbs.) |
| RANGE |
50 km (31 miles) |
| MAX SPEED |
25 km/h (15.5 mph) |
| CHARGE TIME |
3 hours 40 minutes |
|
| FRAME |
R Series, custom-drawn
7005 aluminum, forged
LP hinge, forged
drop outs, integrated head tube |
| FORK |
Integrated,
patented Fusion technology |
|
| HANDLEPOST |
Radius
Telescope™ adjustable, patented Fusion™ technology, forged
aluminum, patented InSide™ lock |
| STEM |
ProLite
Revolve, 6061 aluminum |
| HANDLEBAR |
6061-T6 aluminum, Flat bar |
| HEADSET |
Dahon
Fusion, Zero stack, cartridge bearings |
| GRIPS |
BioLogic™ Ergo,
AirFlo™ design, reflective end plugs |
| SADDLE |
BioLogic™ Comfort, Ozone design, patented DualDensity™ base |
| SEAT POST |
BioLogic™ suspension
seat post, 40mm travel, forged clamp |
|
| FRONT BRAKE |
Kinetix
SpeedStop V brakes, stainless flex noodle, stainless link and anchor
bolt, "SilentGrip" ceramic brake pads |
| BRAKE LEVER |
BioLogic
V, ultra-smooth machined pivots, Kraton insert |
| CABLES AND HOUSING |
Dahon
LiveWire, SIS housing, slick cable, LubeTube seal |
|
| FRONT HUB |
BioLogic™ Joule
dynamo, 6V/2.4W |
| REAR HUB |
SRAM Sparc, 5 speed |
| SPOKES |
14G, stainless, brass nipples |
| RIMS |
Kinetix
Comp, doublewall, CNC machined sidewalls, wear line indicator |
| TIRES |
Schwalbe
Marathon Racer, 85 psi, Qualifier Compound casing, RaceGuard puncture
protection |
|
| SHIFTERS |
SRAM |
| CRANKSET |
Kinetix Wing, cold forged 6061 crank arms, hand-polished |
| FREEWHEEL |
SRAM 16T |
| BOTTOM BRACKET |
Cartridge, sealed bearings |
| CHAIN |
KMC Z610RB, RustBuster |
| PEDALS |
Folding |
|
| BATTERY |
SRAM, NiMh |
| CHARGER |
SRAM Sparc |
| CHAINGUARD |
Full chainguard |
| KICKSTAND |
Aluminum, Dacromet bolt |
| CLIP SYSTEM |
Magnetix™ system |
| FRONT LIGHT |
Hella
MicroFF, halogen |
| REAR LIGHT |
Hella
Premium, SuperBright LED, light and motion sensors for auto on/off |
| RACK |
Aluminum |
| ACCESSORY |
Reflective trouser clip, bell, bell, mudguards, rack |
|
| *Note: These are our standard model specifications.
The specifications for your country may differ slightly. We do our best
to ensure that the specifications listed here accurately reflect the exact
parts found on our production bikes. However, component changes do occur
for various reasons and there may be brief delays on site updates. Also
our distributors also regularly ask us to make component modifications
to better reflect the requirements of their local markets. We reserve
the right to make component changes without prior notification, which
may cause discrepancies with the information listed on the web. |
|
|
|
|
